Kit Includes:
- 1 x Thunderbird MB1760R – 135km Mains Battery or Solar Operated Electric Fence Energiser
- 1 x 120W Multi-crystalline Solar Panel with mounting kit

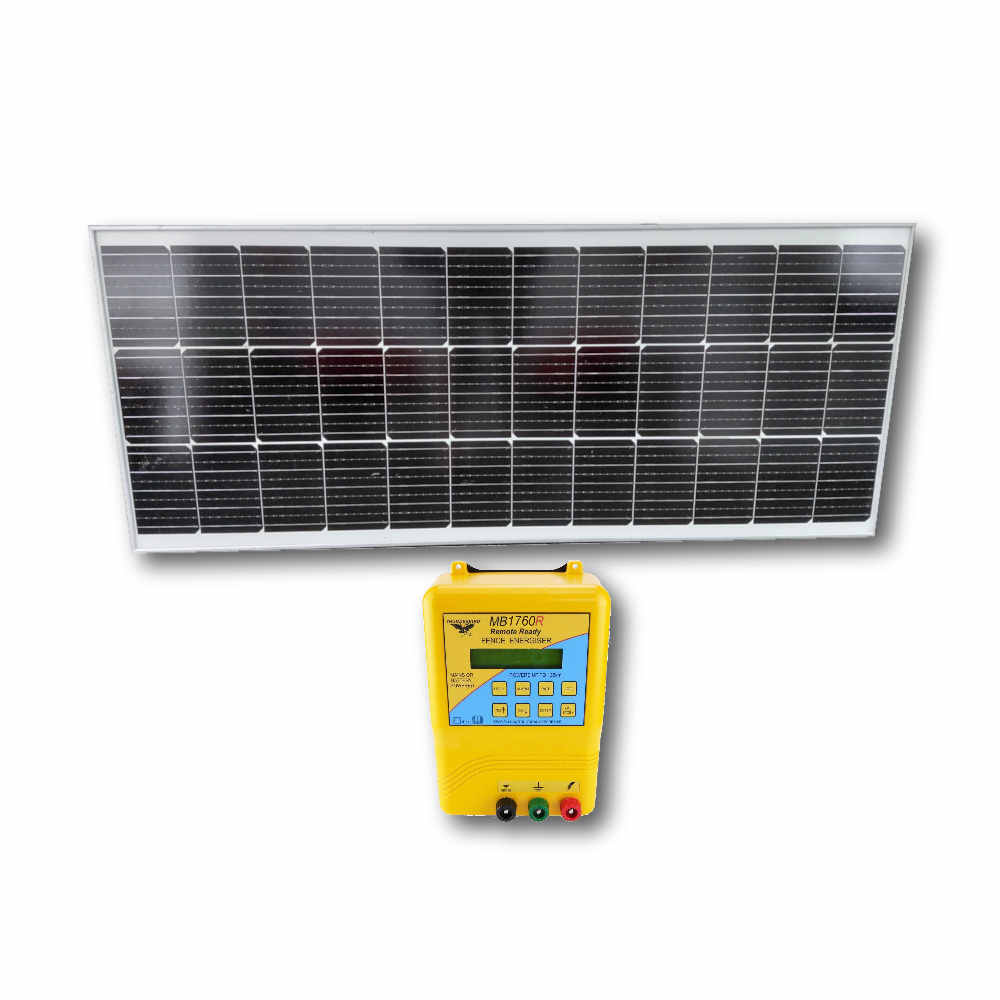

Thunderbird 135km Solar Fence Energiser Kit
Built for Large Properties, Long Fence Lines & Tough Australian Conditions
If your current energiser isn’t holding voltage, or your fence line is pushing the limits, this is the upgrade that fixes it.
The Thunderbird 135km Solar Kit is a high-output, off-grid fencing system designed for serious setups — long distances, heavy vegetation, and livestock that don’t respect weak units.
Why This Unit Works When Others Don’t
Most solar energisers struggle when fence lines get long, vegetation builds up, or animals start testing the fence.
With 16.8 joules of stored energy, this unit delivers a strong, consistent pulse that:
- Keeps cattle, pigs, and goats contained
- Maintains voltage across long boundary fences
- Performs reliably in real-world farm conditions
Simple: it works where smaller units stop working.
Fully Off-Grid Solar Power
This kit includes a 120W solar setup, making it ideal for:
- Remote paddocks
- Boundary fencing
- Areas without mains power
Set it up once and let it run.
Who This Is For
This is not a hobby unit. It’s built for:
- Large acreage properties
- Long fence runs (multi-kilometre setups)
- High-pressure livestock containment
- Remote or hard-to-access areas
- Farmers upgrading from underpowered energisers
Key Features
- 16.8 Joules Stored Energy – high output for demanding conditions
- Up to 135km Coverage – suited for large-scale fencing
- 120W Solar Panel + Regulator – reliable off-grid operation
- Digital Display – monitor voltage, load, and earth performance
- Built-in Alarm System – alerts for faults or voltage drops
- Rugged Design – built for Australian conditions
Ready to Upgrade Your Fence?
If you’re running long distances, dealing with vegetation, or managing strong livestock, this is the unit that delivers results.

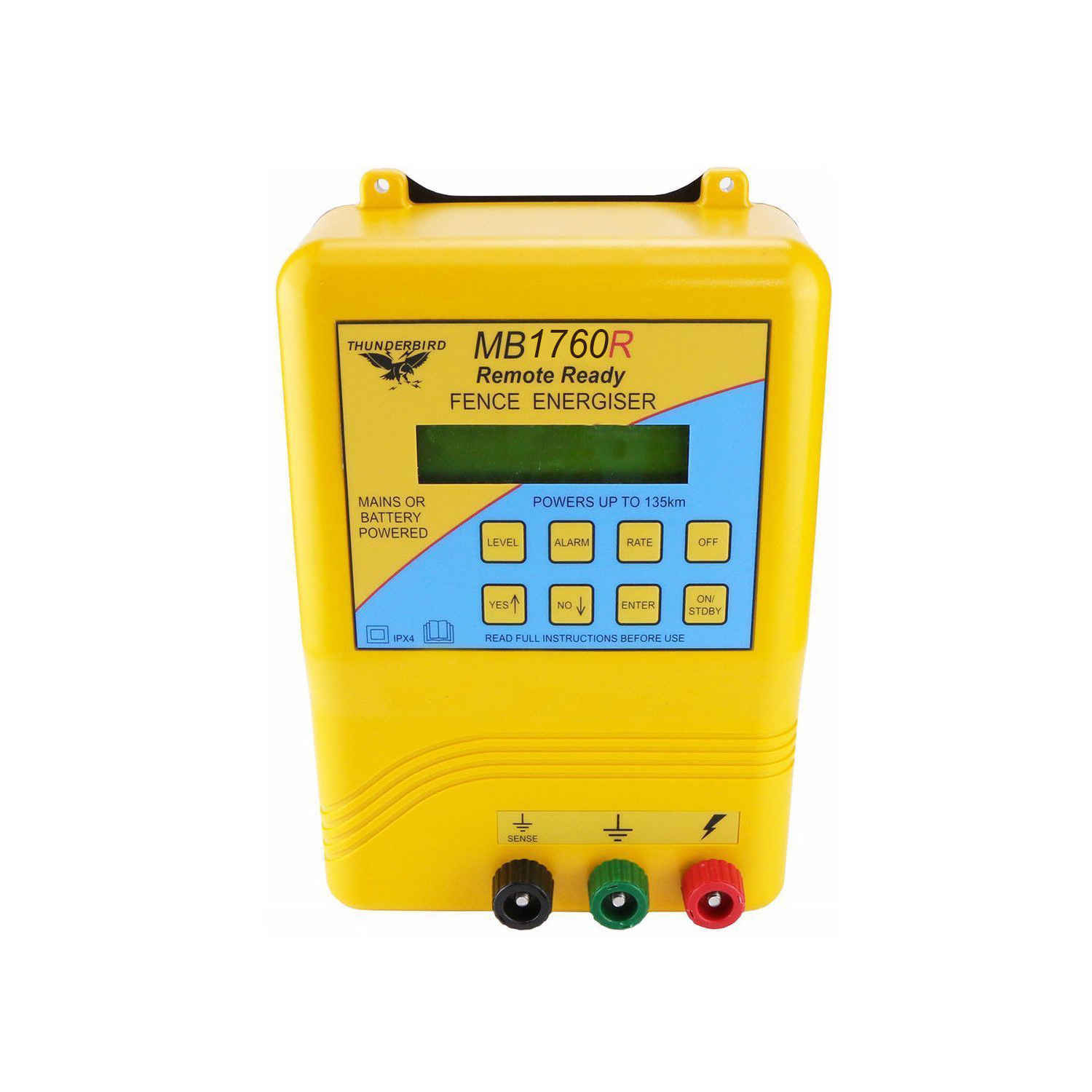

Thunderbird MB1760R Mains or Battery Operated Electric Fence Energiser MB1760R Features
- 🛠️ 3 Year Manufacturer’s Warranty — plus 6 months lightning warranty.
- 🇦🇺 Australian Made — designed and built for local conditions
- ⚡ Auto Power Boost — automatically adds energy to the fence as required for large or high-demand setups
- 📊 Digital display — shows output voltage, earth condition, joules, and amps all together for easy monitoring
- 🔋 Mains or battery powered — includes 12V lead and A.C. adaptor; optional solar kit available for remote paddocks or wildlife enclosures
- 🛰️ Remote ready — turn the energiser on or off from the paddock (remote sold separately)
- ⚡ Three power levels — low, medium, high; delivers up to 9.9 kV for large animals and extensive fencing
- 🌱 Earth monitor — displays the condition of your earth system for reliable operation
- ⏱️ 13 pulse speeds — select from 1.2 to 2.4 seconds for flexible fence control
- 🔔 Built-in alarm — internal buzzer activates when fence voltage drops; optional strobe light or siren plus strobe available
- 💧 Tough enclosure — O-ring sealed, weatherproof, and robust ABS for country and outdoor use
- ☀️ Solar compatible — optional solar kit can charge battery for remote rural or zoo installations
- 🔧 Quality components — SMD electronics with vacuum-sealed transformer for long-lasting, heavy-duty performance
- 🔋 Auto battery save function — output and pulse rate automatically adjust when battery voltage drops
- Digital Function Display
- Output voltage
- Earth conditions poor-fair-good
- Amps – condition of fence
- Joules – energy being used
- Mode – standby, diagnostic data
Thunderbird MB1760R Mains or Battery Powered Electric Fence Energiser MB1760R
Specifications
- Model: MB1760R
- Stored Joules:16.8 J
- Max Fence Length: 135 km
- Voltage No Load: 8.2 kV
- Voltage @ 250 Ω : 6.7 kV
- Current Drain 550-1250 mA
- Solar Kit Size: (optional solar kit)
- Thunderbird Electric Fence Universal Energiser Manual

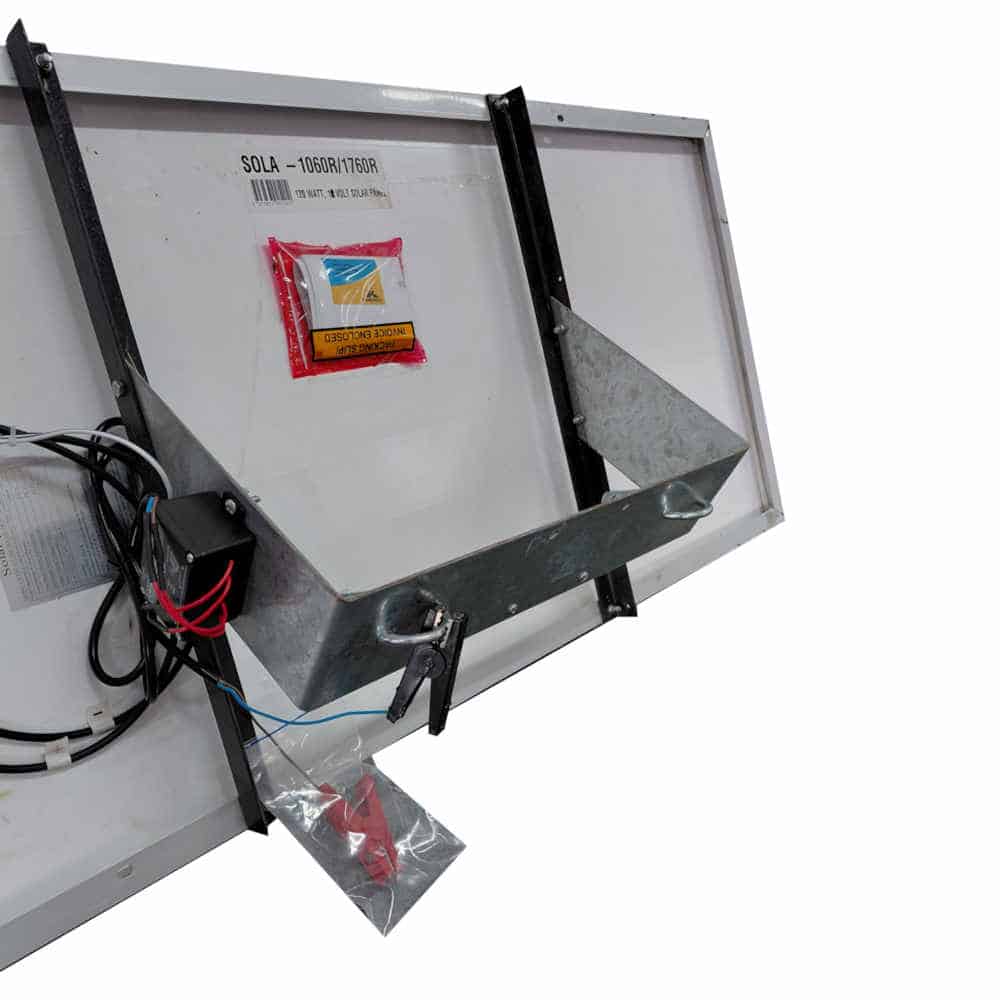

Thunderbird 120W Solar Panel Energiser Charging Kit Includes:
- 120W 12V Multi Crystalline Solar Panel
- Charging Regulator
- Heavy Duty Mounting Frame
If you are unsure which panel you require, a general starting rule of thumb is 10W worth of solar panel will work best for 10km or 1 Joule of energiser rating eg: A 20km or 2 joule energiser will use a 20watt solar panel. Battery size is generally double eg: A 30km or 3 joule energiser will use a 60Ah 12V battery.
Any 12V rechargeable battery can be used
